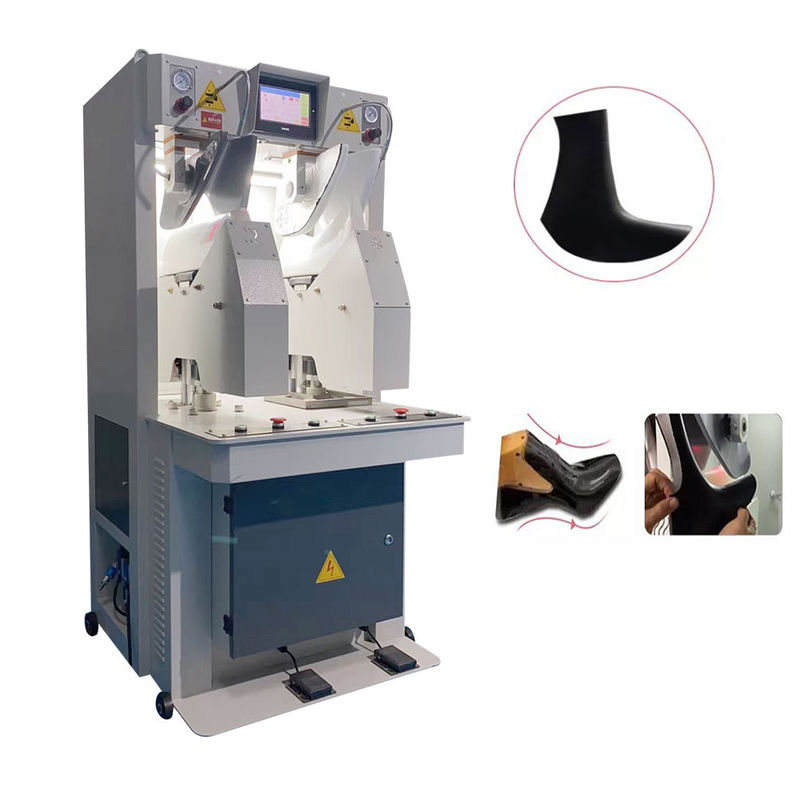

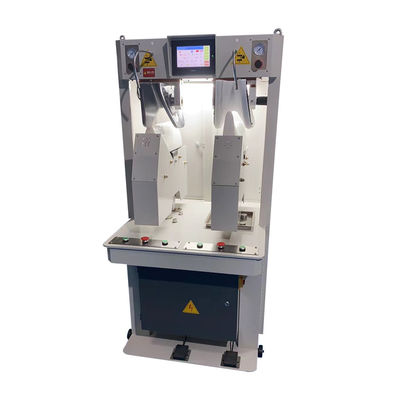

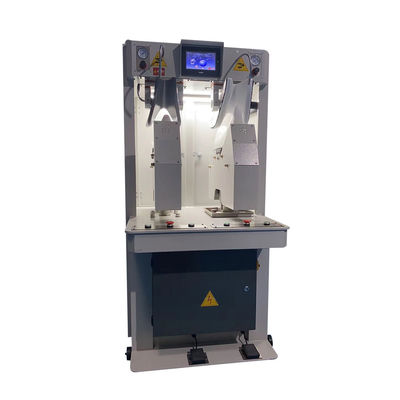

3D Shoe Injection Moulding Machine Energy Efficient Shoe Upper Machine High Precision

3D Shoe Injection Moulding Machine Energy Efficient Shoe Upper Machine High Precision

Brand Name:	YUTAI
Model Number:	YT-688
MOQ:	1 set
Price:	negotiate price
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10 set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, China

Product Name:

3D Vamp Crimping Machine

Voltage:

220V 50HZ

Power:

2.2KW

Air Pressure:

0.5-0.6Mpa

Capacity:

60-80 Pairs/hour

Machine Size:

1200*930*1720MM

Weight:

450kg

Feature:

For Styling Of Various Upper Sizes

Packaging Details:

Standard export wooden case

Supply Ability:

10 set/month

Highlight:

3D Shoe Injection Moulding Machine

High Precision Sole Molding Machine

Energy Efficient Shoe Upper Machine

Product Description

Features:

1.The 3D upper shaping machine is a kind of machine that uses high temperature to melt the hot fuse in the upper fabric, so that the fabric is hardened, which is convenient for workers to cut and shape. First, after the upper cloth is processed, it needs to be heated to melt the hot fuse in the upper cloth, and the temperature should not be too high or too low. After heating, pressurize and cool again to achieve the effect of not rebounding after setting.

2. This machine integrates three major functions in one, at the same time, the upper of the seam is shaped, warped and ironed at the same time, so that the upper and the last are perfectly fit.

3. After shaping, there is no need for secondary trimming.

4. After shaping, the upper will not be deformed.

5. The versatile stereotypes are suitable for all kinds of men, women and children shoes uppers.

6. The machine is easy to adjust and the upper shape is easy.

7. The upper is easy to place without clamping jaws.

8. The shaping effect is perfect, and the shaping takes a short time to effectively increase production capacity.

9. This machine is suitable for uppers, riding boots, sheet materials and sandals that have been sewn.
