Shoe Making Machine
Created with Pixso.

130KG N.W Footwear Making Machine for Shoe Upper Back Warping Molding in Manufacturing Plant

130KG N.W Footwear Making Machine for Shoe Upper Back Warping Molding in Manufacturing Plant

Brand Name: YUTAI
Price: CN¥4,960.27/sets 1-5 sets
Detail Information
Place of Origin:
Guangdong, China
Condition:
New
Applicable Industries:
Manufacturing Plant, Shoe Factory
Weight (KG):
90
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Not Available
Marketing Type:
Hot Product 2023
Warranty Of Core Components:
1 Year
Core Components:
Mould
Warranty:
1 Year
Product Name:
Upper Molding Machine
Color:
Blue
Voltage:
220V/50HZ
Power:
1KW
Pressure:
0.5-0.7Mpa
Output:
1200 Pairs/8 Hrs
Machine Size:
630*450*1850 (MM)
N.W:
130KG
Product Description
Product Description

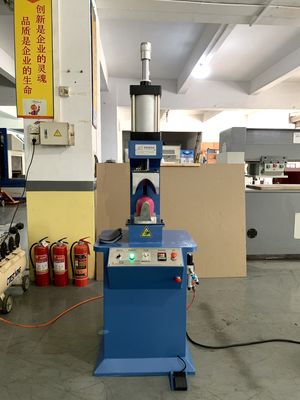

YT-188 Shoe Upper Back Molding Machine
130KG N.W Footwear Making Machine for Shoe Upper Back Warping Molding in Manufacturing Plant 0
Features:
1. The machine is used for warping the upper back of Men's or Women's Leather Shoe before lasting, to make the sides looks more curved elegant.
2. This machine is pneumatic, the temperature, timer and pressure can be adjusted.
3. Adopts large air cylinder device, the stroke can be adjusted, suitable for shoes with different warping degrees, good shaping effect.
4. The top mould is made of special materials, durable and does not damage the vamp.
5. The bottom mold is made of special silica gel.
6. Lining is tightly pasted to the upper after molding, that vamp is free of wrinkle, deformation or bubble.
Technical Parameter
Model
YT-188
Machine name
Shoe Upper Back Molding Machine
Voltage
220V 50HZ
Power
1KW
Output
1000 Pairs/8 Hours
Machine Dimension
630*450*1850(MM)
Packing Dimension
700*500*1920(MM)
N.W/G.W
90/120KG
130KG N.W Footwear Making Machine for Shoe Upper Back Warping Molding in Manufacturing Plant 1
130KG N.W Footwear Making Machine for Shoe Upper Back Warping Molding in Manufacturing Plant 2

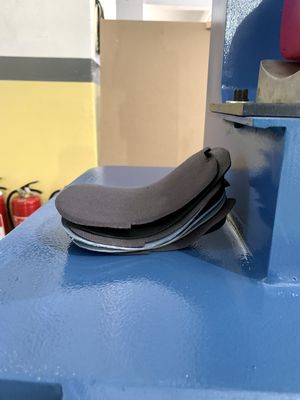

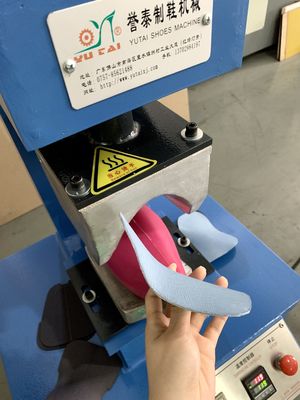

This mold can be moved back & forth, according to the size and warped degrees of shoe.
130KG N.W Footwear Making Machine for Shoe Upper Back Warping Molding in Manufacturing Plant 3

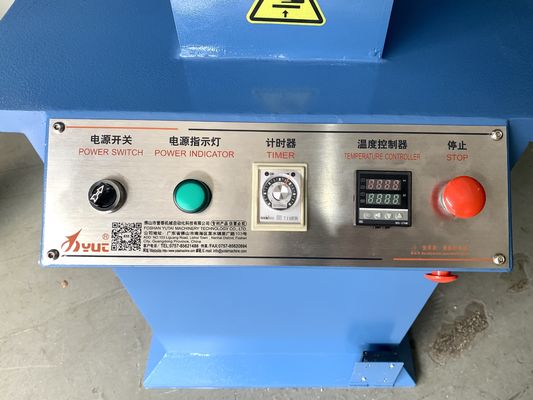

Operation Panel
It easy to operate and understand.
Can quick to adjust different kinds of parameters, it is can help you control the machine faster.
Hot Products
Package
130KG N.W Footwear Making Machine for Shoe Upper Back Warping Molding in Manufacturing Plant 4
130KG N.W Footwear Making Machine for Shoe Upper Back Warping Molding in Manufacturing Plant 5
130KG N.W Footwear Making Machine for Shoe Upper Back Warping Molding in Manufacturing Plant 6
130KG N.W Footwear Making Machine for Shoe Upper Back Warping Molding in Manufacturing Plant 7
Company Introduction
130KG N.W Footwear Making Machine for Shoe Upper Back Warping Molding in Manufacturing Plant 8
130KG N.W Footwear Making Machine for Shoe Upper Back Warping Molding in Manufacturing Plant 9
130KG N.W Footwear Making Machine for Shoe Upper Back Warping Molding in Manufacturing Plant 10
Our Service
· We will reply to you within 8 hours.
· Fast delivery time and good after service.
· Keep the mass production as the sample in high quality
· Freight forwarder: faster, safer, and convenient.
· Good factory price.
FAQ
Q1: Are you the factory or trading company?
A1: We are the direct factory with 24 years experience in producing shoe machines.

Q2: What is your MOQ of your Product?
A2: Normally our MOQ is 1 set.

Q3: What's your payment term?
A3: Normally we do 30% T/T in advance 70% balance before shipment. Other payment terms can be discussed case by case.

Q4: What's your after-sales service?
A4: For repairing or spare parts pls contact me by Mail, WeChat, Whatsapp or call, we will reply you in 8 hours.

Q5: How long does your product warranty?
A5: Our product is guaranteed for 1 year.

Q6: What is the product package?
A6: Our products package are standard wooden cases, carton and so on, we also accept customer's requirements about the package.

Q7: Do you test all your goods before delivery?
A7: Yes, we will test the machine and take videos and pictures for you to check before each delivery.
130KG N.W Footwear Making Machine for Shoe Upper Back Warping Molding in Manufacturing Plant 11
