YT-238A YUTAI Long Boots Vamp Shoe Crimping Bend Moulding Machine With Big Knife Other Shoemaking Machines 750*1000*1700 MM

YT-238A YUTAI Long Boots Vamp Shoe Crimping Bend Moulding Machine With Big Knife Other Shoemaking Machines 750*1000*1700 MM

Brand Name: YUTAI
Price: CN¥36,052.28/sets 1-4 sets
Detail Information
Place of Origin:
Guangdong, China
Applicable Industries:
Manufacturing Plant, Shoe Factory
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Not Available
Marketing Type:
Hot Product 2024
Warranty Of Core Components:
1 Year
Core Components:
-
Condition:
New
Production Capacity:
1200Pairs/8Hrs
Voltage:
380V
Power:
3.5KW
Dimension(L*W*H):
750*1000*1700(MM)
Weight:
400
Warranty:
1 Year
Key Selling Points:
High Productivity
Air Pressure:
0.6Mpa
Product Name:
Vamp Crimping Machine
Product Description
YT-238A YUTAI Long Boots Vamp Shoe Crimping Bend Moulding Machine With Big Knife Other Shoemaking Machines 750*1000*1700 MM 0
Product Description
YT-238A Big Knife Vamp Crimping Moulding Machine
YT-238A YUTAI Long Boots Vamp Shoe Crimping Bend Moulding Machine With Big Knife Other Shoemaking Machines 750*1000*1700 MM 1
Features:

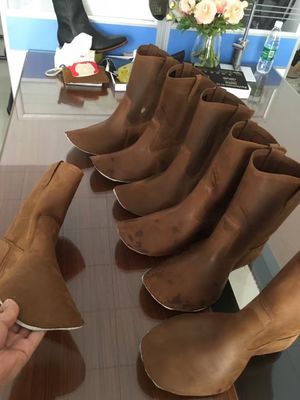

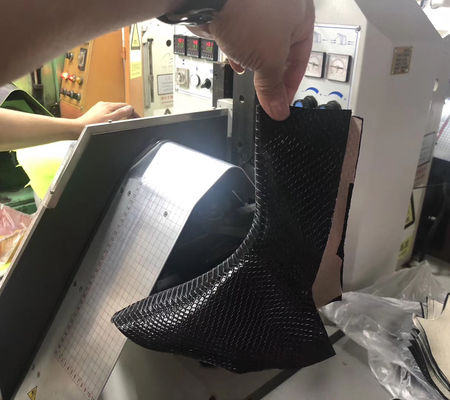

1. The machine is mainly used to bend crimping vamp in the production of boots.

2. Adopting hydraulic and pneumatic driving, it utilizes heat and pressure to bend crimping vamp into curved shape required.

3. The pressure,heating temperature and pressing time can be adjusted according to the thickness and type of leather, so as to obtain the optimal shaping result.

4. The left and right side pressing plates and their heating temperature can be regulated individually to adapt to specific leather nature.

5. The external pressing plate is convenient in regulation of travel upon requirement.

6. Side plates adjustable with double-pressing. The first reduced pressure is to avoid leather broken, the second is for a good effect shaping.
Technical Parameter
Model
YT-238A
Name
Big Knife Vamp Crimping Molding Machine
Voltage
380V
Power
3.5KW
Air Pressure
0.6Mpa
Daily Output
1200 Pairs/8 Hrs
Machine Dimension
750*1000*1700(MM)
N.W/G.W
400/460KG
YT-238A YUTAI Long Boots Vamp Shoe Crimping Bend Moulding Machine With Big Knife Other Shoemaking Machines 750*1000*1700 MM 2
YT-238A YUTAI Long Boots Vamp Shoe Crimping Bend Moulding Machine With Big Knife Other Shoemaking Machines 750*1000*1700 MM 3
Package
YT-238A YUTAI Long Boots Vamp Shoe Crimping Bend Moulding Machine With Big Knife Other Shoemaking Machines 750*1000*1700 MM 4
YT-238A YUTAI Long Boots Vamp Shoe Crimping Bend Moulding Machine With Big Knife Other Shoemaking Machines 750*1000*1700 MM 5
YT-238A YUTAI Long Boots Vamp Shoe Crimping Bend Moulding Machine With Big Knife Other Shoemaking Machines 750*1000*1700 MM 6
YT-238A YUTAI Long Boots Vamp Shoe Crimping Bend Moulding Machine With Big Knife Other Shoemaking Machines 750*1000*1700 MM 7
Hot Products
Company Introduction
YT-238A YUTAI Long Boots Vamp Shoe Crimping Bend Moulding Machine With Big Knife Other Shoemaking Machines 750*1000*1700 MM 8
YT-238A YUTAI Long Boots Vamp Shoe Crimping Bend Moulding Machine With Big Knife Other Shoemaking Machines 750*1000*1700 MM 9
Our Service
·We will reply to you within 8 hours.
· Fast delivery time and good after service.
· Keep the mass production as the sample in high quality
· Freight forwarder: faster, safer, and convenient.
· Good factory price.
FAQ
Q1: Are you the factory or trading company?
A1: We are the direct factory with 23 years experience in producing shoe machines.

Q2: What is your MOQ of your Product?
A2: Normally our MOQ is 1 set.

Q3: What's your payment term?
A3: Normally we do 30% T/T in advance 70% balance before shipment. Other payment terms can be discussed case by case.

Q4: What's your after-sales service?
A4: For repairing or spare parts pls contact me by Mail, WeChat, Whatsapp or call, we will reply you in 8 hours.

Q5: How long does your product warranty?
A5: Our product is guaranteed for 1 year.

Q6: What is the product package?
A6: Our products package are standard wooden cases, carton and so on, we also accept customer's requirements about the package.

Q7: Do you test all your goods before delivery?
A7: Yes, we will test the machine and take videos and pictures for you to check before each delivery.
