Manufacturing Plant Strong Leather Fabric Insole Latex Gluing Spray Gun Machine with Production

Brand Name:	yutai
Price:	CN¥3,839.51/sets 1-9 sets

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Applicable Industries:

Manufacturing Plant

Showroom Location:

None

Video Outgoing-inspection:

Provided

Machinery Test Report:

Not Available

Marketing Type:

New Product 2020

Warranty Of Core Components:

1 Year

Core Components:

Gun

Condition:

New

Automatic Grade:

Automatic

Voltage:

220v/50hz

Power:

250

Dimension(L*W*H):

1040*800*1250

Weight:

80 KG

Warranty:

2 Years

After Warranty Service:

Video Technical Support/Online Support

N.W:

55KG

Packaging Dimensions:

1140*900*1450mm

Productivity:

1500-2000pairs/ 8 Hours

Product Description

Product Description

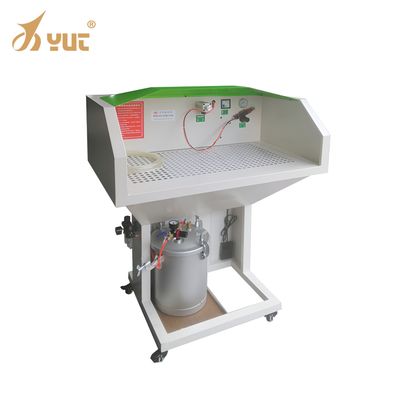

YT-503 Latex Glue Sprayer Machine

Function:
It is widely used in different kinds of manufacture, like shoes upper, lining, leather suitcase and other products.

Features:
1. It suitable for any natural gum and water base glue.

2 Easy operation, spray evenly, the spraying area and glue quantity are adjustable.

3 It saves glue, cleanliness,labor cost ,improve the quality and output, reduce the cost.

4.The spray gun adopts principle of vacuum but not the traditional thimble to control glue spraying. Such design helps to realize no leakage and blocking.

5.Ventilation system adopts the ambient pressure and it will generate a suction on spray table by a special device, in which way no glue will be adhered to motor blades at ventilation, so as to prevent it from shortening motor's lifetime.

6.Spray table adopts the latest interface, which makes operators feel easy to work.

7.With a novel appearance, the sprayer can move flexibly.

[Common questions you might ask]

1.The glue quantity is controlled by air pressure, and the minimum width is 1cm. no need to change the nozzle spray.
2.It is using water-based glue.
3.The table size of sprayer is 68cm length, 47cm width
4.We have exhaust system to reduce the glue smell.
5.Here is some consumable parts, like hose, pressure switch, seal ring, connector and oil cotton. Will you interested to buy
together. If yes, please let me know.
6.The oil cotton is for protect the motor, and increase its life.

Technical Parameter

Model	YT-503
Name	Latex glue sprayer machine
Voltage	220v/50hz
Power	0.25kw
Working table size	680*470mm
Machine dimension	10408001250mm
Package dimension	11409001450mm
Machine weight	55kg
Package weight	80kg

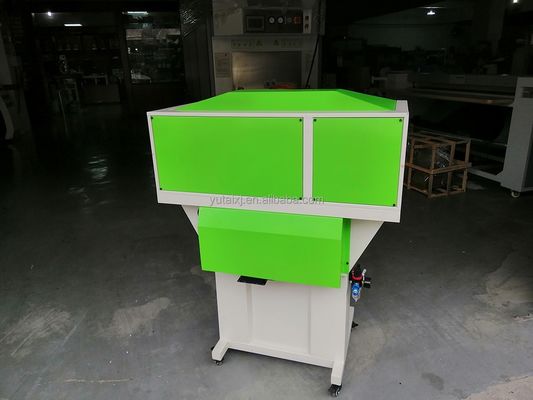

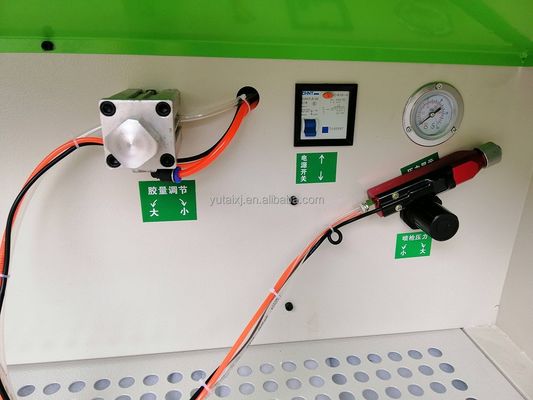

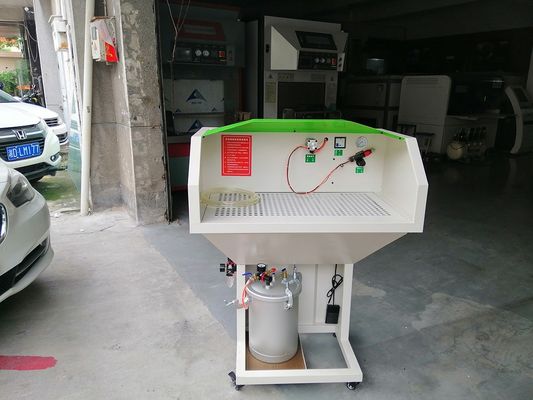

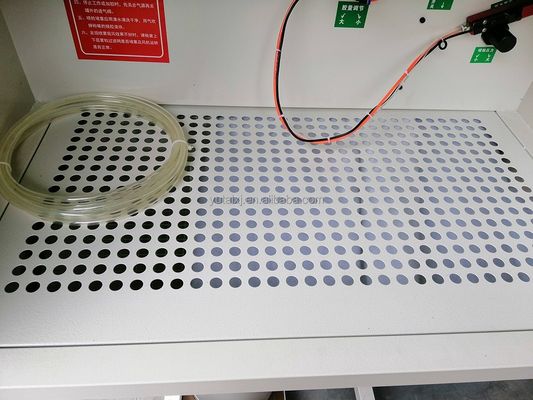

Machine Pictures

Hot Products

Company Introduction

Our Service

· Your reply will be replied within 8 hours.
· Fast delivery time and good after service.
· Keep the mass production as the sample in high quality
· Freight forwarder: faster, safer, and convenient.
· Good factory price.

FAQ

Q1: Are you the factory or trading company?
A1: We are the direct factory with 18 years experience in producing shoe machines.

Q2: What is your MOQ of your Product?
A2: Normally our MOQ is 1 set.

Q3: What's your payment term?
A3: Normally we do 50% T/T in advance 100% balance before shipment. Other payment terms
can be discussed case by case.

Q4: What's your after-sales service?
A4: For repairing or spare parts pls contact me by mail, WeChat, whatsapp or call, we will reply
you in 8 hours.

Q5: How long does your product warranty?
A5: Our product is guaranteed for one year.

Q6: What is the product package?
A6: Our products package are wooden case, carton and so on, we also accept customer's
requirements about the package.

Q7: Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery.
