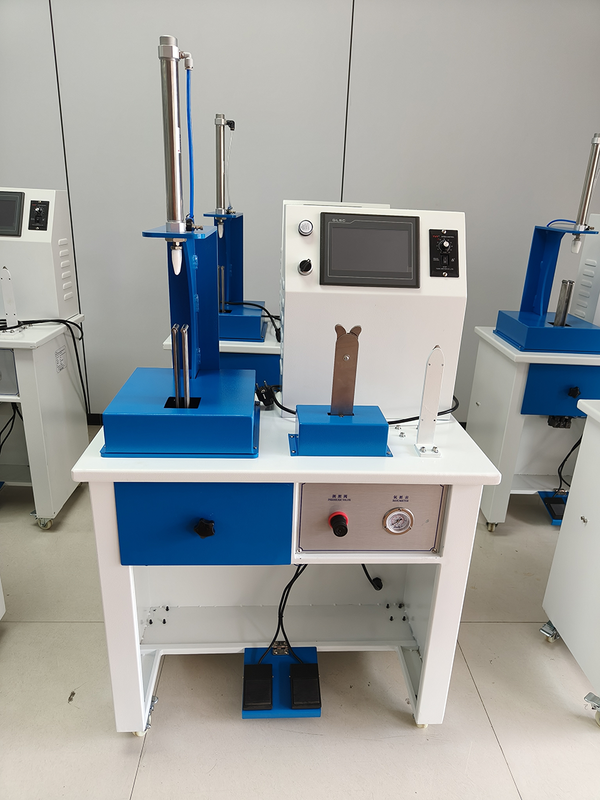

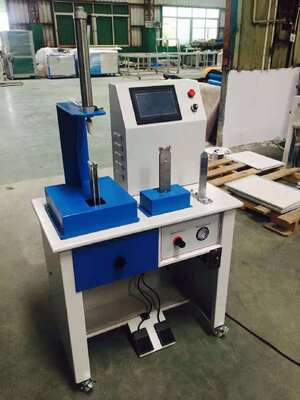

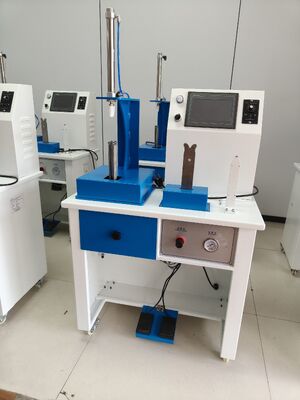

Pneumatic Computer Automatic Shoe Tongue flip machine

Brand Name:	YUTAI
Model Number:	YT-202A
MOQ:	1Set
Price:	$1386
Payment Terms:	L/C, T/T
Supply Ability:	200Sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Voltage:

220V/50HZ

Air Pressure:

0.4-0.6Mpa

Power:

0.15kw

Machine Weight:

65kg

Machine Dimension:

750*420*1380mm

Daily Output:

2000-2500pairs

Packaging Details:

Wooden case

Supply Ability:

200Sets/month

Highlight:

Pneumatic shoe tongue flip machine

Automatic shoe tongue machine

Computer shoe making machine

Product Description

Main Functions

This is special‑purpose equipment for the shoe‑making industry, designed for flipping and shaping the tongues of sports shoes and casual shoes

1. Place the sewn semi‑finished shoe tongue onto the workstation. Driven by pneumatic power and computer programs, the machine automatically reverses the inward‑folded shoe tongue and stretches it flat. It replaces manual tongue‑flipping work. Processed shoe tongues are neatly shaped and ready for subsequent production procedures

2. Compatible with thick shoe tongues and sports‑style tongues; works with various tongue fabrics

3. Pedal‑switch operation: load the workpiece and step on the pedal to trigger automatic flipping and stretching in one cycle

4. PLC touch‑screen control with adjustable parameters for shoe tongues of different sizes and thicknesses

5. Daily output reaches 2000‑2500 pairs, ideal for mass‑production assembly lines in shoe factories.

Advantages

High efficiency & labor saving

Replaces manual tongue‑flipping entirely. Manual flipping is labor‑intensive and slow. This machine delivers stable output. One operator can run multiple units, cutting labor costs and boosting overall line capacity.

Consistent finished quality

Standardized mechanical flipping and stretching ensure every tongue is properly turned and smooth. It avoids common manual defects such as misalignment, wrinkles and uneven tension, delivering uniform appearance and higher yield rate

Easy operation Parameters are set via touch screen, started by foot pedal. General workers can operate it after short‑term training; no sophisticated experience required.
